What are the Main Parts of Lathe Machine?

Main Parts a Lathe Machine is a necessary tool used to shape, cut, and drill various materials, primarily metals and wood, by rotating the workpiece on its axis.

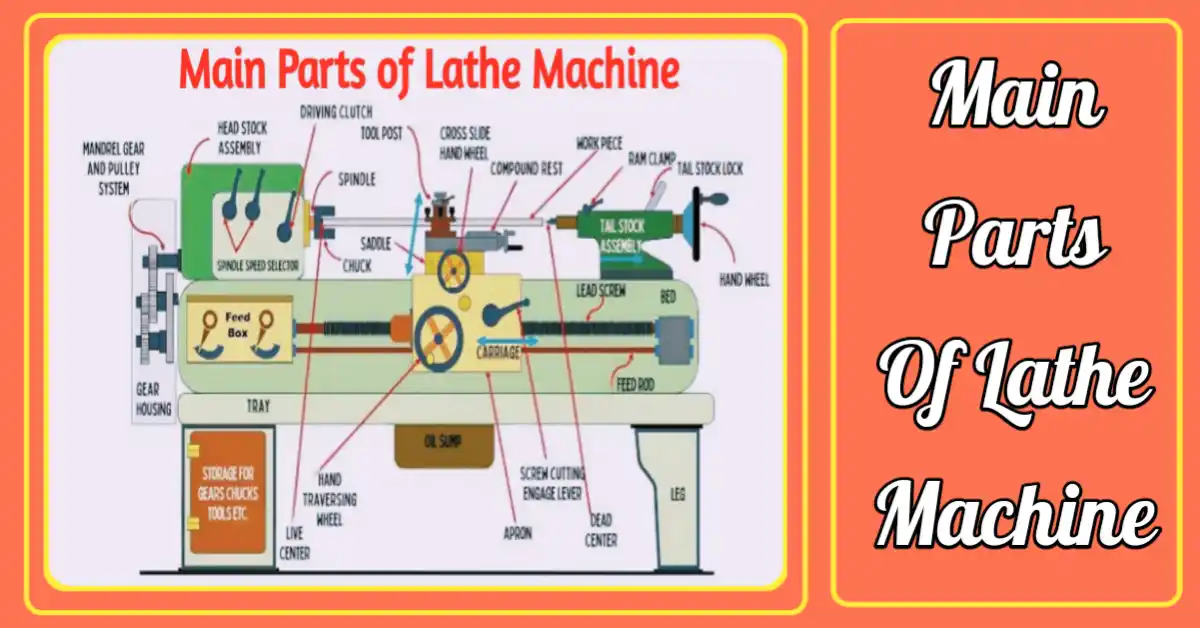

Main Parts a Lathe Machine

The main parts of a lathe machine include:

1. Bed

• The base and backbone of the lathe, providing stability and alignment for all other parts.
• Typically made from cast iron to absorb vibrations.

2. Headstock

• Located on the left side of the lathe, the headstock houses the spindle and gearbox.
• Contains the mechanism to rotate the workpiece at different speeds.
• The spindle holds the workpiece, while the gearbox controls spindle speed.

3. Tailstock

• Positioned on the opposite side of the headstock.
• Used to support the other end of the workpiece during machining, especially for long workpieces.
• Can hold tools such as drills or reamers for additional operations.

4. Carriage

• Moves along the bed and holds the cutting tool.
• Composed of several parts:
  • Saddle: Fits over the bed and carries the rest of the carriage.
  • Cross Slide: Allows lateral movement of the tool.
  • Compound Rest: Allows angular movement of the tool.
  • Tool Post: Holds the cutting tool in place.

5. Chuck

• A clamping device attached to the spindle to hold the workpiece securely.
• Can be a three-jaw (self-centering) or four-jaw (independent) chuck.

6. Lead Screw

• Used for automatic feed and threading operations.
• Engages with the carriage to move it along the bed in synchronization with spindle rotation.

7. Feed Rod

• Controls the feed of the carriage and tool.
• Provides uniform movement of the tool during operations like turning.

8. Apron

• Attached to the carriage, containing the handwheels and mechanisms to control the movement of the carriage along the bed.
• Houses the controls for automatic feed.

9. Spindle

• A rotating shaft in the headstock that holds and drives the workpiece.

10. Tailstock Quill

• A cylindrical part of the tailstock that extends and retracts to support the workpiece or hold drilling tools.

11. Legs (or Stand)

• Support the machine and provide stability.

These components work together to perform various operations such as turning, facing, knurling, and threading on the lathe.

Main Parts of a Lathe Machine and Their Functions

A lathe machine is a versatile tool used for shaping and machining cylindrical objects. It consists of several essential components, each with a specific function:

1. Headstock:

• Spindle: The rotating part that holds the workpiece.
• Chuck: A device that grips the workpiece securely.
• Backplate: A plate that attaches the chuck to the spindle.
• Gearbox: A mechanism that allows for different spindle speeds.

2. Bed:

• The long, sturdy base that supports the headstock, tailstock, and carriage.

3. Tailstock:

• Tailstock spindle: A movable spindle that supports the workpiece at the opposite end from the headstock.
• Tailstock quill: A movable part that allows the tailstock spindle to be adjusted.
• Center drill: A tool used to create a conical hole in the workpiece.

4. Carriage:

• Bedway: The part that slides along the bed.
• Cross slide: A movable part that allows for cutting tools to be moved perpendicular to the workpiece.
• Compound slide: A movable part that allows for cutting tools to be moved at an angle to the workpiece.
• Tool post: The part that holds the cutting tool.

5. Feed Mechanism:

• A system that controls the movement of the carriage and the cutting tool.

6. Motor:

• The power source that drives the spindle.

7. Control Panel:

• A panel that allows the operator to control the machine’s functions.

8. Coolant System:

• A system that delivers coolant to the cutting tool to reduce heat and improve cutting performance.

Functions of the Lathe Machine:

• Turning: Reducing the diameter of a workpiece.
• Facing: Machining a flat surface perpendicular to the axis of rotation.
• Boring: Creating a hole in a workpiece.
• Threading: Creating threads on a workpiece.
• Knurling: Creating a patterned surface on a workpiece.
• Grooving: Creating a groove on a workpiece.
